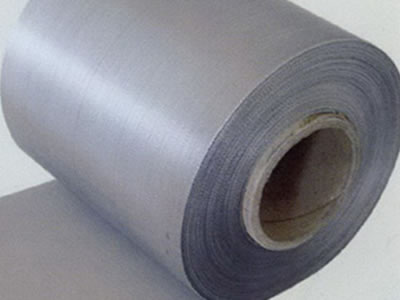

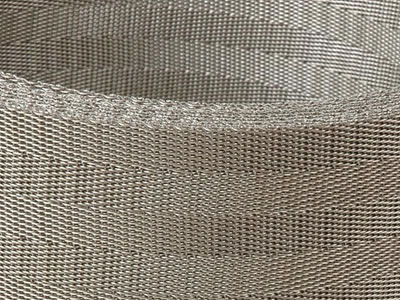

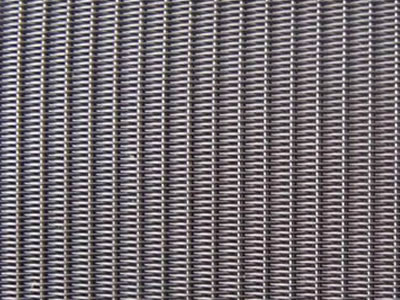

Dutch Wire Cloth

Dutch Wire Cloth is also known as filter cloth or micron cloth.

Wire Materials for Dutch Weave Filter Wire Cloth: Mild steel wire, brass wire, nickel wire, stainless steel wire, polyester fiber.

Typical Weaving Patterns: Dutch plain, Dutch twill, Dutch reverse.

General Use: Filtering and screening in airspace, oil and chemicals.

Dutch Wire Cloth

Specification List of Dutch Wire Cloth:

Wire Mesh Plain Dutch Weave
Gauge	Mesh	Wire Diameter	Reference values of particles passed
40	10x64	0.55x0.42	260
50	12x75	0.45x0.35	220
80	24x110	0.35x0.25	160
100	25x140	0.28x0.20	100
120	30x150	0.25x0.18	80
140	35x180	0.20x0.16	70
160	40x200	0.18x0.13	60
180	45x220	0.16x0.12	56
200	50x250	0.15x0.11	50
240	60x300	0.14x0.09	45
260	65x320	0.13x0.08	36
280	70x400	0.125x0.07	34
300	80x700	0.11x0.039	32

Wire Mesh Twilled Dutch Weave
Gauge	Mesh	Wire Diameter	Reference values of particles passed
80II	20x250	0.28x0.2	38
120II	30x300	0.25x0.18	36
200II	50x500	0.14x0.11	34
320I	80x700	0.11x0.08	32
320II	80x780	0.10x0.07	30
360	90x780	0.10x0.07	25
400I	100x780	0.10x0.07	22
400II	100x900	0.10x0.063	20
500	120x1100	0.07x0.05	17
630	150x1400	0.063x0.04	16
650	180x1800	0.07x0.04	14
685	165x1400	0.063x0.032	13
795I	200x1400	0.07x0.04	12
795II	200x1800	0.05x0.032	10
850	2l0x1900	0.045x0.03	10
1000	250x2000	0.045x0.028	8
1125	280x2200	0.036x0.026	7
1225	300x2200	0.036x0.026	6
1280	325x2300	0.035x0.025	5
1600	400x2800	0.03x0.018	3

Reverse Dutch Weave Wire Cloth Specification
Mesh Count Warp x Weft	Wire Dia mm Warp x Weft	Wire Dia inch Warp x Weft	Open Area %	Micron Rating
63 x 18	0.4000 x 0.6000	0.0157 x 0.0236	60	220
107 x 20	0.2400 x 0.6000	0.0094 x 0.0236	58	210
170 x 40	0.2000 x 0.4500	0.0079 x 0.0177	58	130
132 x 32	0.2000 x 0.4000	0.0079 x 0.0157	55	105
171 x 46	0.1500 x 0.3000	0.0059 x 0.0118	54	85
290 x 75	0.0900 x 0.2000	0.0035 x 0.0079	53	55
615 x 102	0.0400 x 0.1600	0.0157 x 0.0063	41	42
615 x 130	0.0400 x 0.1300	0.0157 x 0.0051	49	22
720 x 150	0.0360 x 0.1000	0.0014 x 0.0039	54	17
